Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole

Markenname:

Savantec

Modellnummer:

SV-Bo

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Produktname:
Integrale Tools abgebaut
Warenzeichen:
Savantec
Farbe:
Silber
Material:
Hochgeschwindigkeitsstahl
Verpackungsmethode:
Plastikbox
Herkunft:
China (Festland)
Beschichtung:
Nein (kann hinzugefügt werden)
Anpassen:
Ja
Versandhafen:
Shanghai
Zahlungs- und Versandbedingungen
Min Bestellmenge
10
Zahlungsbedingungen
T/t
VERWANDTE PRODUKTE
Kontakt mit uns
Kontaktieren Sie uns jetzt
Beschreibung des Produkts

Savantec 6.35-10.31 high-speed steel one pass deburring Single edged deburring tool for inner hole





product description



Deburring holes is usually a costly and time-consuming operation. The back sides of holes are particularly difficult, as they are frequently inaccessible with conventional deburring tools.



The BO deburring tool, often referred to as a burr removal tool or deburring equipment, is a specialized tool used to remove burrs from the surface of workpieces after machining operations. Burrs are small protrusions or sharp edges that can form on metal parts during cutting, drilling, grinding, or other machining processes.



Savantec deburring Tool Products offers you a better way to get rid of those troublesome burrs. Savantec deburring tools remove burrs on the front, back, or both sides of drilled holes in one pass. . . fast, easy, and economical solutions for your hole-deburring problems!



The burr off tool comes in both inches and metric sizes,ranging from holes as small as 0.8mm to 5.56mm. Savantec Tools have both single and double edges deburring tools, as well as titanium nitride coating and custom measurements as per request. Contact Savantec Tools for competitive pricing. In portable power tools – no need for replicated fixtures, and no special operator skills are required.




product specification



Standard tool   Unit:mm
ORDER CODE DRILL HOLE SHANK D SHAND d OAL DIM.A DIM.B DIM.D Recommand REV
SV-BO-0.8 0.8-0.9 3 0.7 45 1 1.5 1.05 1800
SV-BO-0.9 0.9-1.0 3 0.8 45 1 1.5 1.2 1800
SV-BO-1.0 1.0-1.1 3 0.9 45 1 1.5 1.35 1800
SV-BO-1.1 1.1-1.2 3 1 45 1 1.5 1.5 1800
SV-BO-1.2 1.2-1.3 3 1.1 45 1 1.5 1.65 1800
SV-BO-1.3 1.3-1.4 3 1.2 45 1 1.5 1.8 1800
SV-BO-1.4 1.4-1.5 3 1.3 45 1 1.5 1.95 1800
SV-BO-1.5 1.5-1.6 3 1.4 50 2 2.5 2.1 1500
SV-BO-1.6 1.6-1.7 3 1.5 50 2 2.5 2.25 1500
SV-BO-1.7 1.7-1.8 3 1.6 50 2 2.5 2.4 1500
SV-BO-1.8 1.8-1.9 3 1.7 60 2 2.5 2.55 1500
SV-BO-1.9 1.9-2.0 3 1.8 60 2 2.5 2.65 1500
SV-BO-2 2.0-2.2 3 1.9 60 2 2.5 2.8 1500
SV-BO-4 2.2-2.4 3 2 80 2 2.5 3.15 1500
SV-BO-5 2.4-2.6 3 2.1 80 2 2.5 3.45 1500
SV-BO-6 2.6-2.8 3 2.2 80 2 2.5 3.7 1500
SV-BO-7 2.8-3.18 2.75   101.6 3.18 4.45 4.00 1200
SV-BO-8 3.18-3.55 3.15   101.6 3.18 4.45 4.34 1200
SV-BO-9 3.55-3.96 3.58   101.6 3.18 4.45 4.74 1200
SV-BO-10 3.96-4.36 3.9   101.6 3.18 4.45 5.54 1200
SV-BO-11 4.36-4.74 4.34   101.6 3.18 4.45 5.94 1200
SV-BO-12 4.74-5.15 4.72   101.6 3.18 6.22 6.35 1200
SV-BO-13 5.15-5.56 5.13   101.6 3.18 6.22 6.78 1200
SV-BO-14 5.56-5.94 5.54   101.6 6.48 6.22 7.92 800-1000
SV-BO-15 5.94-6.35 5.92   101.6 6.48 6.22 8.33 800-1000
SV-BO-16 6.35-6.75 6.32   101.6 6.48 6.22 8.71 800-1000
SV-BO-17 6.75-7.13 6.73   101.6 6.48 6.22 9.12 800-1000
SV-BO-18 7.13-7.54 7.11   101.6 6.48 6.22 9.53 800-1000
SV-BO-19 7.54-7.95 7.52   101.6 6.48 6.22 9.91 800-1000
SV-BO-20 7.95-8.33 7.92   101.6 7.24 6.48 10.31 800-1000
SV-BO-21 8.33-8.71 8.31   101.6 7.24 6.48 10.72 800-1000
SV-BO-22 8.71-9.11 8.69   101.6 7.24 6.48 11.1 800-1000
SV-BO-23 9.11-9.52 9.09   101.6 7.24 6.48 11.51 800-1000
SV-BO-24 9.52-9.90 9.5   112.7 8 6.48 12.7 800-1000
SV-BO-25 9.90-10.31 9.88   112.7 8 6.48 13.08 600





product image

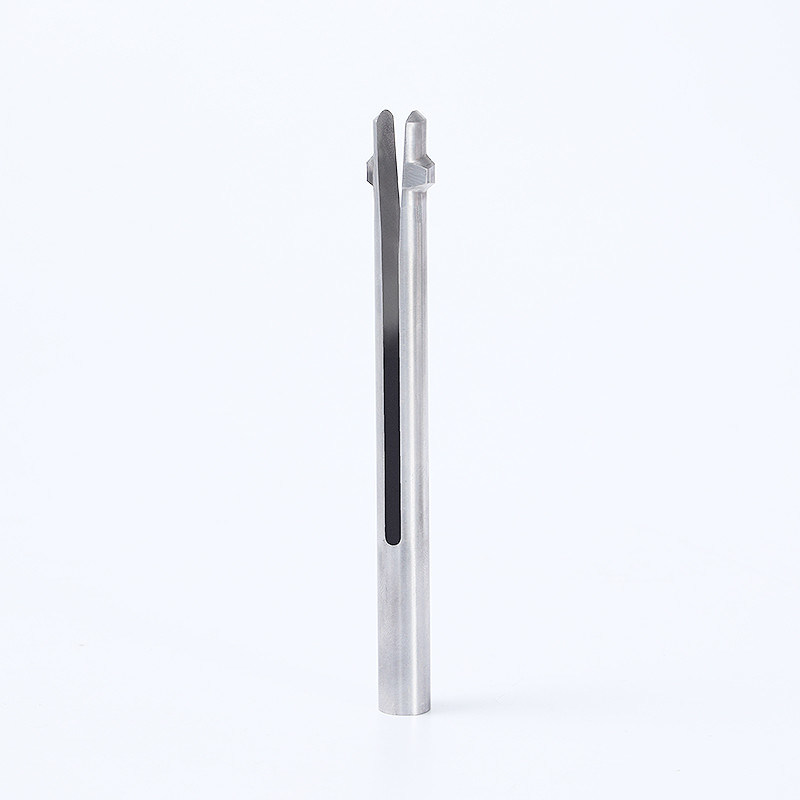

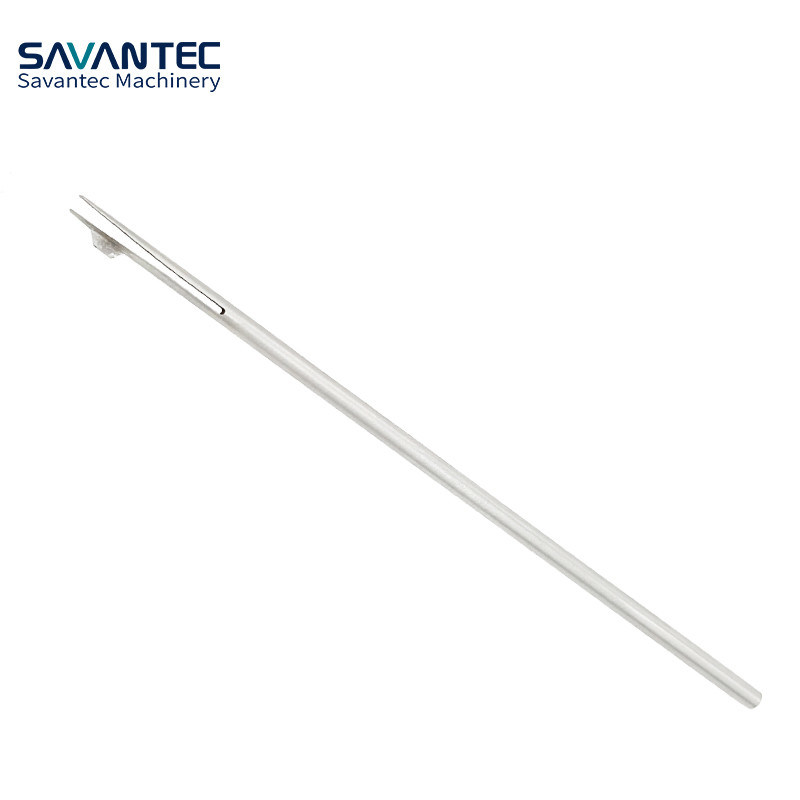

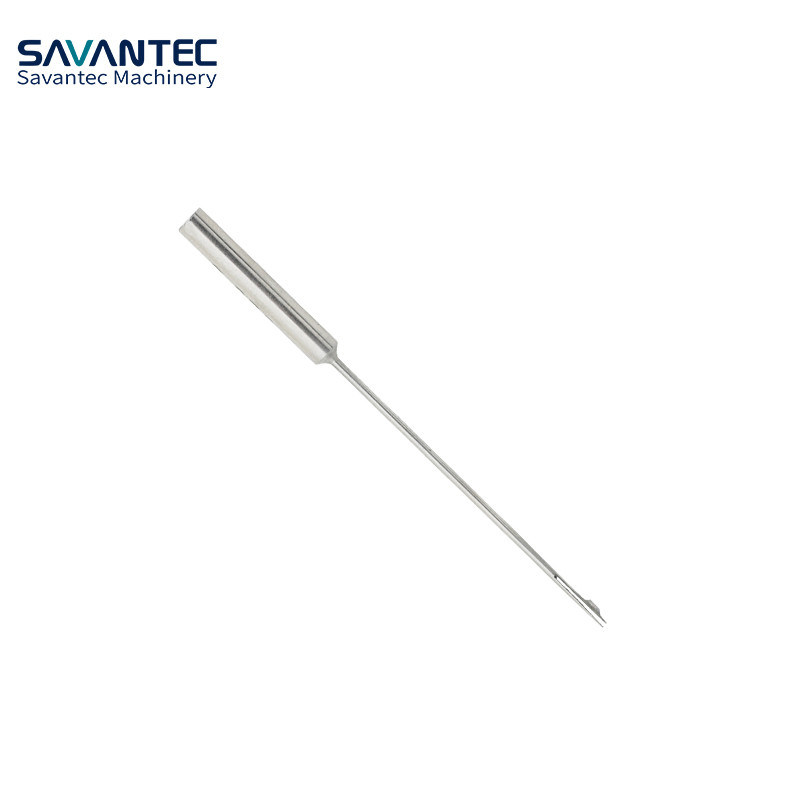

Savantec 6.35-10.31mm High Speed Steel One Pass Deburring Tool For Inner Hole 0
